36" 4 shaft 1024-0136 $2755
45" 4 shaft 1024-0145 $3050
60" 4 shaft 1024-0160 $3371

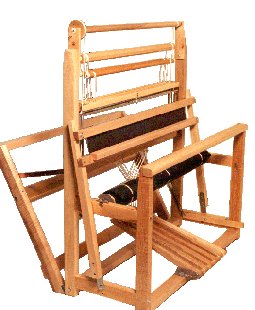

Leclerc's 4 Shaft Counterbalance "Fanny" model Looms have been a favorite of Handweavers for over 60 years. There are literally hundreds in operation thru-out North America and around the world.
Compact and solid.
Due to the ease of Treadlle reach, the "Fanny" is favored by the average weaver for comfort over long weaving sessions. Leclerc's solid design allows weaving the full range of Fabric including Rugs.
With that, Leclerc decided to enhance the overall weavibility by introducing the "Fanny II"
All "Fanny II" model Looms incorporate Leclerc's exclusive Shed Regulator. This unique mechanism provides a quick simple switch from balanced to unbalanced weaves with a minimum of adjustment, providing the same versatility as a Jack Loom but with the advantage of full control over top and bottom Shed openings offered by the Counterbalance design. The Counterbalance Shed is wide and clean on every pick over the full range of 4 Shaft weaves including the higher tension Rug designs.
For the full range of 4 Shaft Fabrics, the "FANNY II" is the choice for price and performance.
1024-0036 36"
1024-0045 45"
1024-0060 60" |
|
FANNY II STANDARD EQUIPMENT
| » Steel reed, 12 dents/inch (5dents/cm) |
» 2 lease sticks |
| » 6 treadles |
» 4 warp rods |
| » Wire heddles, 10½" |
» 2 aprons |
| » 1 boat shuttle 11¾" 6122-3000 |
» 2 cords |
| » 1 doz. plastic bobbins 6133-6000 |
» Book: "Warp and Weave" |
| » 1 reed & heddle hook 6141-7000 |
» Assembly instructions |
SPECIFICATIONS & DIMENSIONS
| Weaving width |
36" (90 cm) |
45" (115 cm) |
60" (150 cm) |
| Number of heddles |
1000 |
1200 |
1500 |
| Loom Width |
48" (117 cm) |
55" (140 cm) |
70" (178 cm) |
| Depth when open |
36½" (93 cm) |
36½" (93 cm) |
36½" (93 cm) |
| Depth when folded |
25" (63 cm) |
25" (63 cm) |
25" (63 cm) |
| Height |
56" (142 cm) |
56" (142 cm) |
56" (142 cm) |
| Front height |
31¼" (79 cm) |
31¼" (79 cm) |
31¼" (79 cm) |
| Net weight |
118 lbs (58 kg) |
130 lbs (59 kg) |
258 lbs (72 kg) |
OPTIONS
| |
36" |
45" |
60" |
Extra charge for inserted eye
heddles instead of wire heddles |
1029-9800 |
1030-9800 |
1031-9800 |
| Bench open ends |
6384-4000 |
6384-4000 |
6384-4000 |
| Sectional warp beam 1" section |
6441-4000 |
6441-5000 |
6441-6000 |
| Sectional warp beam 2" section |
6442-4000 |
6442-5000 |
6442-6000 |
| Double warp beam |
6432-3000 |
6432-4000 |
6430-6000 |
| Flying shuttle beater |
|
6471-5000 |
6471-6000 |
|
