Nilus II 36", 45" and 60" $2,755.00

Jack-Type
36" 4 shaft 1029-0000 $2755    36" 8 shaft 1029-0008 $3290
45" 4 shaft 1030-0000 $3050    45" 8 shaft 1030-0008 $3825
60" 4 shaft 1031-0000 $3371    60" 8 shaft 1031-0008 $4227

36" 8 shaft back hinge treadles 1029-3628 $3692
45" 8 shaft back hinge treadles 1030-4528 $4120
60" 8 shaft back hinge treadles 1031-6028 $4655

Counter-Balance                       Countermarche
36" 4 shaft 1026-0000 $2755    36" 8 shaft 1029-0018 $4168
45" 4 shaft 1027-0000 $3050    45" 8 shaft 1030-0018 $4468
60" 4 shaft 1028-0000 $3371    60" 8 shaft 1031-0018 $4969

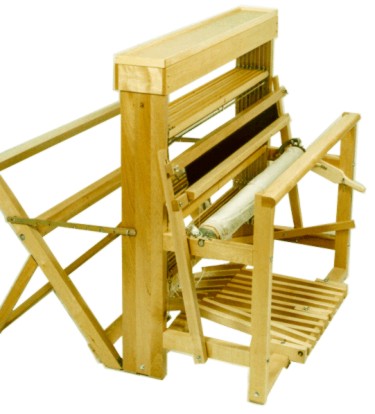

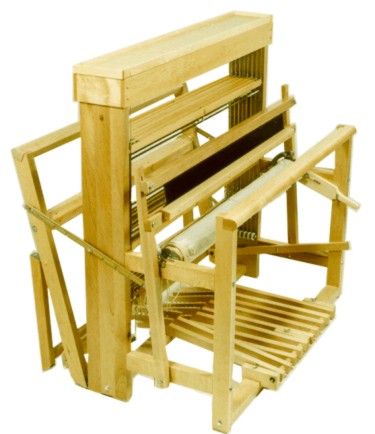

NILUS II
Jack-type, Counter-Balance or new Countermarch

The Nilus II (4 shafts) available in three versions, folds to a depth of 27½" (70 cm).

The Nilus II loom has been designed with a stabilizer foot, for a better stability. The shed is always good with any combination of tie-up.

The counter-balanced version is built with an integrated shed regulator. So it is possible to weave any kind of material.

On the jack-type version, the top can be easily removed, allowing easy access to the shafts for the addition or removal of heddles. Heddles used are 12½" (31,7 cm) long. It is a loom with independant shafts, guided into slides at each end, preventing friction of shaft frameswhich are pushed upwards by an underneath mechanism.

All Nilus II loom have non-sliding polyvinyl foot padsat its base, keeping it solid on the floor.

It is equipped with a friction brake giving a perfect tension every time. The front cloth beam ,front and back breast beams are removable for easy threading, and the warp beam is also removable for outside beaming when required.

All looms are equipped with a regular plain beam to which a set of rake-like pieces can be added to convert it into a sectional warp beam.

Special kits have been designed to convert the loom from one system to the other. (counter-balance to jack-type or countermarch and jack-type to counter-balance or countermarch). You can convert the regular 4 shaft jack-type into an 8 shaft jack-type loom with the 4 extra shafts kit but if you plan to do so it is be better to buy our 4 shaft now - 4 more later model. This four now, four later model already has the wide castle and castle top so you can buy our kit of 4 shafts and 4 treadles when desired.


4 SHAFT JACK-TYPE LOOM

36" 1029-0000 4 Shaft Loom
45" 1030-0000 4 Shaft Loom $
60" 1031-0000 4 Shaft Loom

4 SHAFT COUNTER-BALANCE LOOM

36" 1026-0000 4 Shaft Loom
45" 1027-0000 4 Shaft Loom
60" 1028-0000 4 Shaft Loom

-


8 SHAFT LOOM
36" 1029-0008 Jack-Type
45" 1030-0008 Jack-Type
60" 1031-0008 Jack-Type


NILUS II COUNTERMARCH

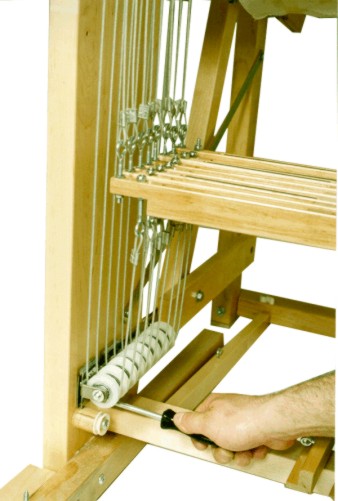

This countermarch system has one set of lams, two sets of pulleys above the shafts and one set of pulleys below. The lams raise the shaft connected by a PRE-CUT METAL CABLE COVER WITH NYLON  and a pulley, while the treadle cord attached to the lower part of the shaft frame lower the one we want . In a countermarch loom, every shaft is actively involved in each shed: each shaft is either lifted or pulled down by each pedal. Uneven shed like 3 shafts against 1 is always large and clean . Because you actually lift or pull down every shaft, you never have any problem with one shaft floating when it should not. In our diagram you can see the treadle pulling down shaft #1 while the other three are lifted by the action of the lam. When the lam moves down, the cord attached to it goes around the lower pulley, then around the upper one and finally, lifts the shaft attached to it. More details in our technical report.

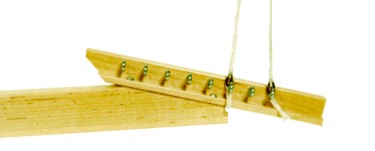

FEBRUARY 1998, NEW TIE-UP SYSTEM WITH LOOP CORD (EASY AND FAST)


MAY 1998, NEW PRE-ADJUSTED CABLES, NO ADJUSTEMENT TO DO

  8 SHAFT LOOM
36" 1029-0018
45" 1030-0018
60" 1031-0018




NEW!
 NILUS II JACK-TYPE LOOM
WITH BACK HINGE TREADLES

As with all Loom designs there are some tradeoffs. With the Jack Loom the problem most often cited was the difficulty in getting a good shed with 6+ Shaft weave construction. Our new design has overcome this problem. The new design features the Treadles anchored at the rear of the Loom, with a new unique, Rocker mechanism that insures even tension on all Treadle Cords with the Treadles in both the rest or depressed position. This new design provides the weaver with the ease of Leg Treadling multi Shaft designs, comparable to  that of a 4 shaft. In addition, we experience a wide, clean shed on all Shafts. Using a new procedure, the new Treadle design retains the folding feature designed into the original Nilus II. We, at Leclerc, are very excited about this new Jack Loom Treadling concept. This system is also available in the Nilus and Artisat loom.


COMPLETE 8 SHAFT LOOM
WITH BACK HINGE TREADLES
KIT 4 MORE SHAFT
WITH BACK HINGE TREADLES
Back Hinge Treadles
Kit for Existing NUII 8s
36" 1029-3628 1029-2836 1029-2945
45" 1030-4528 1030-2845 1030-2945
60" 1031-6028 1031-2860 1031-2945


NILUS II STANDARD EQUIPMENT

» Steel reed, 12 dents/inch (5dents/cm) » 2 lease sticks
» 6 treadles » 4 warp rods
» Wire heddles, 12½" » 2 aprons
» 1 boat shuttle 11¾" (6122-3000) » 2 cords
» 1 doz. plastic bobbins 6133-6000 » Book: "Warp and Weave"
» 1 reed & heddle hook 6141-7000 » Assembly instructions

SPECIFICATIONS & DIMENTIONS

Weaving width 36" (90 cm) 45" (115 cm) 60" (150 cm)
Number of heddles 1000 1200 1500
Loom Width 47" (119 cm) 56" (142 cm) 71" (180 cm)
Depth when open 48" (122 cm) 48" (122 cm) 48" (122 cm)
Depth when folded 27½" (70 cm) 27½" (70 cm) 27½" (70 cm)
Height C-Balance 58½" (149 cm) 58½" (149 cm) 58½" (149 cm)
Height Jack-type 49" (125 cm) 49" (125 cm) 49" (125 cm)
Front height 34½" (87 cm) 34½" (87 cm) 34½" (87 cm)
Net weight 158 pds (72 kg) 176 pds (80 kg) 210 pds (95 kg)

OPTIONS

  36" 45" 60"
Extra charge for inserted eye
heddles instead of wire heddles
1029-9800 1030-9800 1031-9800
Bench open ends 6384-4000 6384-4000 6384-4000
Sectional warp beam 1" section 6441-4000 6441-5000 6441-6000
Sectional warp beam 2" section 6442-4000 6442-5000 6442-6000
Double warp beam 6432-3000 6432-4000 6430-6000
Flying shuttle beater   6471-5000 6471-6000
Kit to transform regular 4 shaft jack
loom to 8 shaft jack-type loom
1029-0091 1030-0091 1031-0091
Kit to transform a 4 shaft jack loom to a
8 shaft JACK WITH BACK HINGE TREADLES
1029-2836 1030-2845 1030-2860
